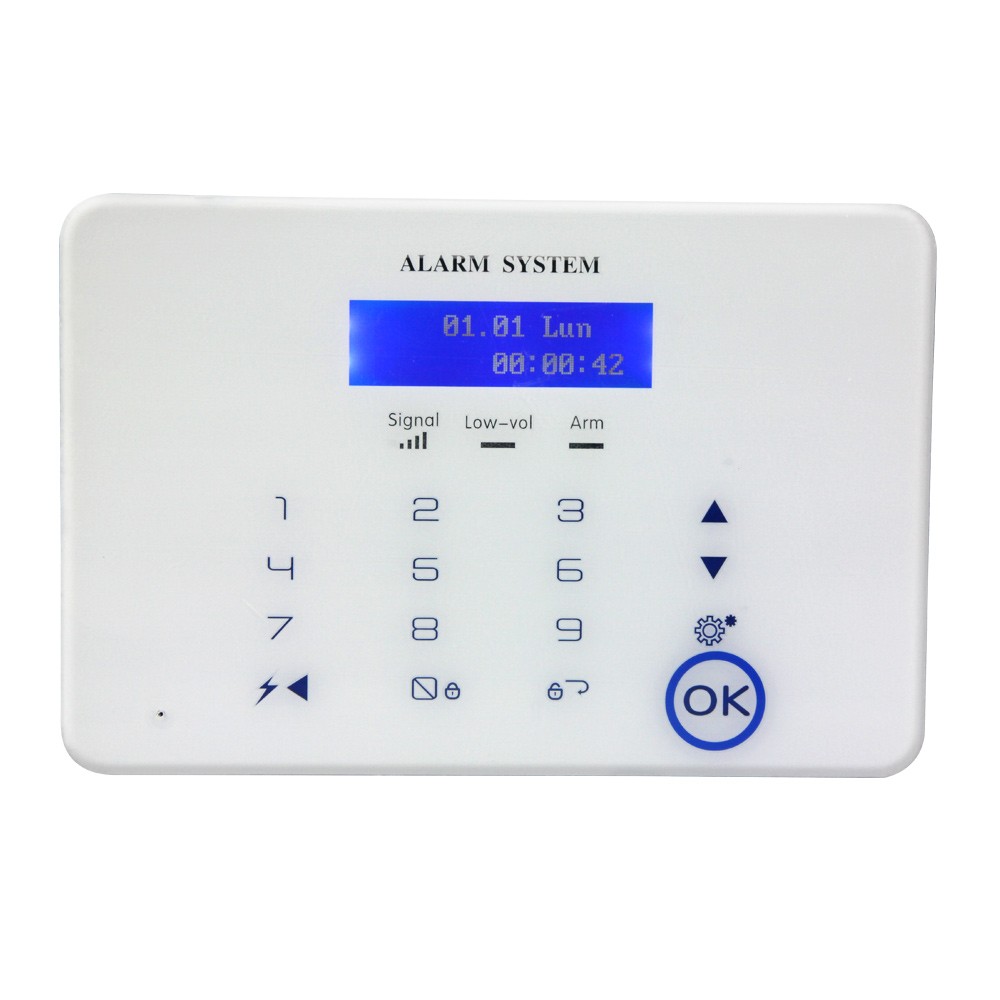

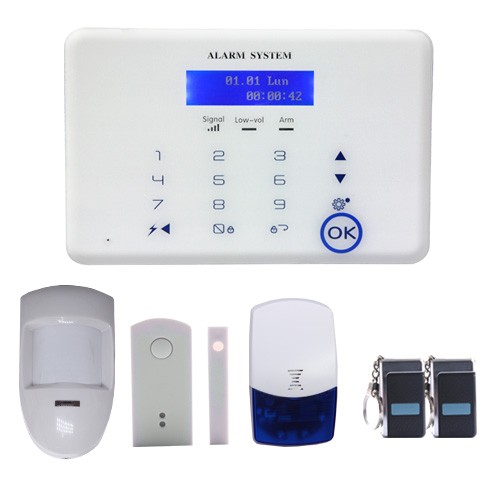

gsm pstn 433/868mhz Alarms system for Home Security

Features:
1. Inbuilt touch keypad, blue backlight for keypad
2. Concise icons guided LCD display.
3. 15 wireless zones, every zones could connect 4 wireless detector. (2 wired zone optional)
4. Alarm report by: phone call and SMS
5. 5 telephone/mobile phone numbers can be preset
6. Arm/Disarm by: inbuilt keypad, remote,phone call, SMS, (wireless keypad optional)
7. AC/DC both available
8. Alert of weak power, no power
9. Monitoring and alert of door/window status (optional)
10. Electrical appliance control and scene control (optional)
11. "Black Box": 100 work history and 100 alarm history
12. Compatoble with CID Protocal (extra GSM SMS connector required)
13. GSM Dual-Band, (Quad-Band optional)
wants to know how it works, here is a link: https://plus.google.com/u/0/100905604966827188163/posts
Technical specifications:
Power supply voltage | AC input : 100 ~ 230VAC DC output : 1A / 12VDC |
the quiescent current | <50mA ( non-rechargeable state) Alarm current : <500mA |
the working environment | Temperature : -10 to 50 ° C Humidity: < 80% |
the back-up battery | lithium battery : 3.7V / 1200mAh |
standby Length | 24 hours ; charge time : 12 hours |
GSM Frequency | 850/900/1800 / 1900MHZ |
GSM transmit power | 2W |
Wireless Frequency | 433 / 868 MHZ(optional),1527 learning code 2262 |
the host size | 168 × 112 × 26 ( mm) |
Package size: | 260 ×210 ×110 (mm) |
